Tieto sady sa dodávajú ako zvláštne príslušenstvo
k Vhu, Vhs a k presným vyvŕtavacím hlavám. Nože sa dodávajú
v drevenných kazetách s náhradnými doštičkami, upínacími
skrutkami a skrutkovačom.
|
| |
|
|

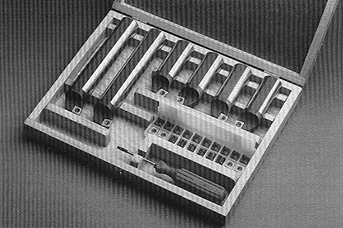

Kazeta
|
d
[mm]
16
|
Kód
203.010 |
ks
|
d
[mm]
25
|
Kód
203.027 |
ks
|
d
[mm]
23
|
Kód
203.034 |
ks
|
|
|
|
S16C SCACL 06 |
1
|
|
S25F SCACL 09 |
1
|
|
S32H SCACL 09 |
1
|
| |
S16C SCBCL 06 |
1
|
|
S25F SCBCL 09 |
1
|
|
S32H SCBCL 09 |
1
|
| |
S16C SCACR 06 |
1
|
|
S25F SCACR 09 |
1
|
|
S32H SCACR 09 |
1
|
| |
S16C SCBCR 06 |
1
|
|
S25F SCBCR 09 |
1
|
|
S32H SCBCR 09 |
1
|
| |
S16H SCFCR 06 |
1
|
|
S25M SCFCR 09 |
1
|
|
S32Q SCFCR 09 |
1
|
| |
S16H SCKCR 06 |
1
|
|
S25M SCKCR 09 |
1
|
|
S32Q SCKCR 09 |
1
|
|
|
210 K |
|
206 281 501
054
CCMT 060204E-46
206 281 501 050 |
10
|
|
206 281 201
154
CCMT 09T304E-47
206 281 501 150 |
10
|
|
206 281 501
154
CCMT 09T304E-47
206 281 501 150 |
10
|
| 320 K |
10
|
10
|
10
|
|
|
|
US19-411923010008 |
12
|
|
US13-411923010009 |
12
|
|
US13-411923010009 |
12
|
|
|
|
KL02-411923050002 |
1
|
|
KL06-411923050006 |
1
|
|
KL06-411923050006 |
1
|
| AxBxC [mm] |
|
205 x 165 x 35
|
|
|
260 x 300 x 45
|
|
|
330 x 230 x 45
|
|
| [kg] |
|
1,05
|
|
|
2,80
|
|
|
4,95
|
|
|
|
Typ
|
Kód |
Značenie |
d
[mm]
|
f
[mm]
|
L
[mm]
|
Dmin
[mm]
|
1
|
Nôž stranový
- ľavý |
SCACL
|
| 415249422423 |
S16C SCACL 06 |
16
|
9
|
50
|
-
|
| 415249423121 |
S25F SCACL 09 |
25
|
14
|
80
|
-
|
| 415249423221 |
S32H SCACL 09 |
32
|
17
|
100
|
-
|
2
|
Nôž stranový
- uberací |
SCBCL
|
| 415249422421 |
S16C SCBCL 06 |
16
|
9
|
50
|
-
|
| 415249422521 |
S25F SCBCL 09 |
25
|
14
|
80
|
-
|
| 415249422621 |
S32H SCBCL 09 |
32
|
17
|
100
|
-
|
3
|
Nôž stranový rohový - pravý |
SCACR
|
| 415249422721 |
S16C SCACR 06 |
16
|
9
|
50
|
-
|
| 415249422821 |
S25F SCACR 09 |
25
|
14
|
80
|
-
|
| 415249422921 |
S32H SCACR 09 |
32
|
17
|
100
|
-
|
4
|
Nôž stranový uberací -
pravý |
SCBCR
|
| 415249422121 |
S16C SCBCR 06 |
16
|
9
|
50
|
-
|
| 415249422221 |
S25F SCBCR 09 |
25
|
14
|
80
|
-
|
| 415249422321 |
S32H SCBCR 09 |
32
|
17
|
100
|
-
|
5
|
Nôž vnútorný rohový - pravý |
SCFCR
|
| 415249423621 |
S16H SCFCR 06 |
16
|
11
|
105
|
20
|
| 415249423721 |
S25M SCFCR 09 |
25
|
17
|
150
|
32
|
| 415249423821 |
S32Q SCFCR 09 |
32
|
22
|
180
|
40
|
6
|
Nôž vnútorný uberací -
pravý |
SCKCR
|
| 415249423321 |
S16H SCKCR 06 |
16
|
11
|
105
|
20
|
| 415249423421 |
S25M SCKCR 09 |
25
|
17
|
150
|
32
|
| 415249423521 |
S32Q SCKCR 09 |
32
|
22
|
180
|
40
|
| |
|
|
|
|
|
|

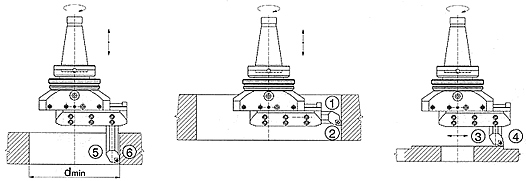

| Príklady použitia |
|
|
|
|
